Mortise Lock Repair & Replacement

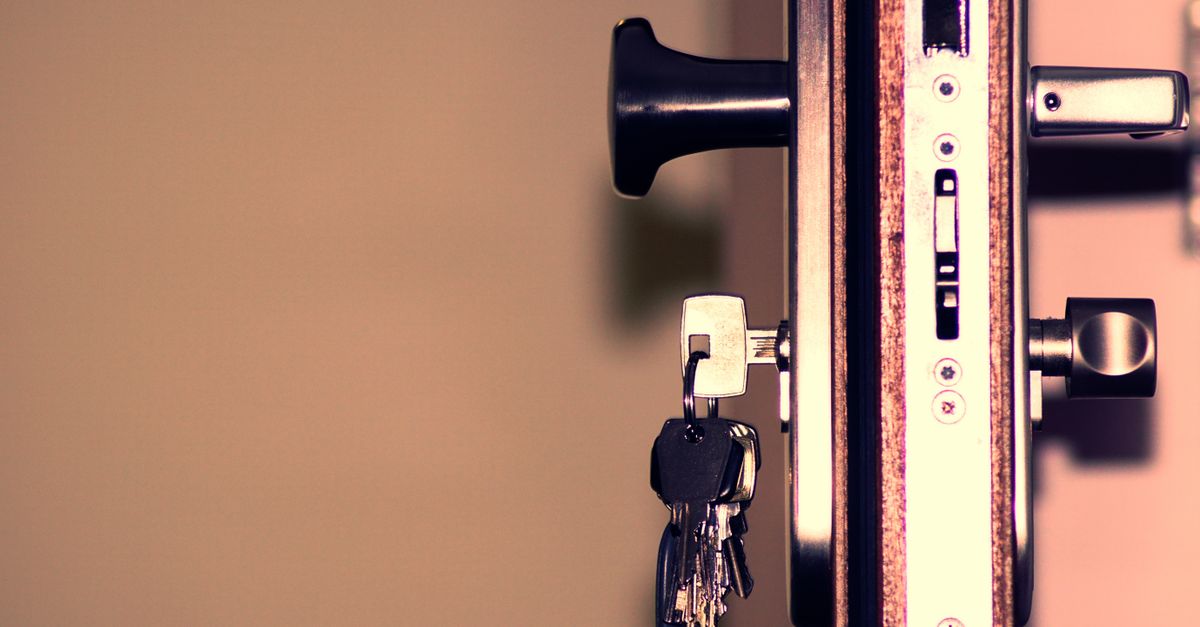

A mortise lock is a lock mechanism that fits into a deep, rectangular pocket — the mortise — cut into the edge of the door. Unlike a cylindrical bored lock (the kind you'd find in most suburban new construction), a mortise body is self-contained: the latchbolt, deadbolt, and strike functions all operate from one steel case. This design distributes force across a much larger area of the door stave, which is why building owners who understand security still specify it for exterior doors today. The trade-off is complexity — more moving parts, more ways for decades of use to cause problems.

Chicago's housing stock tells the story clearly. Buildings constructed between roughly 1890 and 1960 — the era that shaped most of Edgewater, Rogers Park, and Uptown — were built to a standard that assumed mortise hardware. Replacement deadbolts were an afterthought; the original lock was expected to do everything. That means a huge percentage of vintage Chicago rental buildings still have original mortise bodies in service, often the same units installed when Truman was president. When a tenant reports a sticky latch or a landlord realizes the key cylinder is so worn a credit card could wiggle the bolt, that's not a job for a hardware-store deadbolt — that's a job for a locksmith who understands mortise mechanics.

The most frequent calls we receive in Edgewater and the surrounding lakefront neighborhoods fall into a handful of categories. A worn mortise lock cylinder is probably the single most common: the plug develops slop, the key starts feeling loose, and eventually the lock either won't turn or turns without retracting the bolt. We can re-key or swap the cylinder alone in most cases — no reason to replace the entire body if the case is still sound. Broken tailpieces, stripped cam slots, and failed springs are equally common on locks that have been in continuous service for forty or fifty years; these are bench-repair jobs we handle on-site. Misaligned strikeplate pockets — caused by Chicago's seasonal wood movement — make a bolt that technically works feel like it's fighting you every time; we adjust the strike and the case simultaneously so the bolt seats cleanly.

We also handle less obvious problems: frozen mortise lock sets caused by moisture infiltration (a real concern on north-facing Chicago doors that see winter wind off the lake), damaged backplates on ornate Art Deco lever trim, and internal case failures on sliding door mortise lock hardware fitted to vintage pocket doors. If you're managing a mixed-use building that had commercial tenants in a previous life, you may have inherited an electric mortise lock wired to a buzzer panel — we assess and service those too, including checking solenoid function and fail-safe vs. fail-secure configuration. For any door knob lock or lever trim paired with a mortise body, we evaluate trim and case together so the repair is complete, not cosmetic.

Replacing a mortise lock set on an exterior door in a vintage Chicago building is not as simple as walking into a big-box store. The backset, case dimensions, and spindle spacing on pre-war hardware often don't match anything currently on a retail shelf. Our technicians arrive with measuring tools and a working knowledge of standard case sizes — 3-½" and 4" cases, short and long backsets, European and American cylinder formats — so we can identify a compatible modern replacement or source the correct old-stock equivalent. A Baldwin mortise lock, for instance, is a common upgrade choice for owners who want period-appropriate aesthetics combined with current security standards; we stock common Baldwin configurations and can install them the same visit.

When the original door prep simply can't accept a modern replacement without destructive modification, we discuss the options honestly: a correctly sized drop-in replacement, a mortise-to-cylindrical adapter plate, or a high-security cylindrical deadbolt added above the original trim. If you're curious about a smart mortise lock — modern units that retain the mortise form factor but add keypad, Bluetooth, or Z-Wave connectivity — we can advise on models that fit existing pocket dimensions and handle the installation. The goal is always to solve the security problem while doing as little damage as possible to irreplaceable vintage millwork. Ready to talk options for your specific door? Call (773) 832-5820 — we answer 24/7 and can often dispatch same-day in Edgewater and across Chicago.

A frequent question from Chicago property owners is some version of: how much does a locksmith cost, and how much should an emergency locksmith cost compared to a standard call? The honest answer is that mortise lock work varies more than most locksmith jobs because the hardware itself varies so dramatically. Factors that shape the final quote include the complexity of the existing lock body (a simple single-cylinder case versus a multi-function lever-trim mortise set), whether parts are in stock or must be sourced, the time of day (after-hours calls carry a different rate than mid-afternoon appointments), and travel distance to your location within the Chicago metro area. We confirm every price up front — in plain language, before work begins — so there's no invoice surprise at the end.

For commercial locksmith work, mortise hardware questions get even more involved. Buildings along Broadway or Clark Street in Edgewater that have transitioned from retail to residential often have Corbin Russwin mortise lock bodies — a brand long trusted in institutional and commercial settings — still in service on common-area doors. We assess those units for function, re-key them to a new master-key system if needed, and can spec a replacement electric mortise lock for doors that need access-control integration. Our insured mobile team handles residential, commercial, and emergency locksmith calls across Chicago with the same equipment van, which means a landlord dealing with a lockout at 2 a.m. on a building full of tenants gets the same qualified technician who handles scheduled re-key appointments during business hours. Where can you find a reputable locksmith in Chicago for this kind of specialized work? Look for a team that asks about your specific door prep before quoting — that's the sign someone actually knows mortise hardware. Call (773) 832-5820 any time, day or night.

Edgewater IL Locksmith provides the following specific services related to mortise hardware and general locksmith needs across Chicago: (1) mortise lock cylinder replacement and re-keying; (2) mortise case repair — spring, cam, and tailpiece replacement; (3) full mortise lock set replacement on exterior doors; (4) Baldwin mortise lock installation; (5) Corbin Russwin mortise lock service and parts sourcing; (6) sliding door mortise lock repair and replacement; (7) electric mortise lock installation and solenoid testing; (8) smart mortise lock installation and pairing; (9) master-key system design for multi-unit residential buildings; (10) high-security cylinder upgrades for existing mortise bodies; (11) strikeplate alignment and door-frame adjustment; (12) door knob lock repair and replacement; (13) antique backplate and escutcheon repair; (14) pocket-door hardware service; (15) residential lockout service — damage-free entry where possible with ownership verification; (16) commercial lockout response; (17) automotive locksmith service — car lockouts, lost key replacement, transponder programming; (18) broken key extraction from mortise cylinders; (19) deadbolt installation on doors without existing prep; (20) peephole installation and wide-angle viewer upgrades; (21) window lock and sash lock repair; (22) access-control wiring assessment for mortise-integrated systems; (23) safe opening and combination changes; (24) emergency locksmith response 24 hours a day, 7 days a week across Chicago; (25) post-break-in door and lock restoration; (26) new-construction lock installation and keying; (27) tenant move-out re-keying for landlords managing Chicago rental properties.
